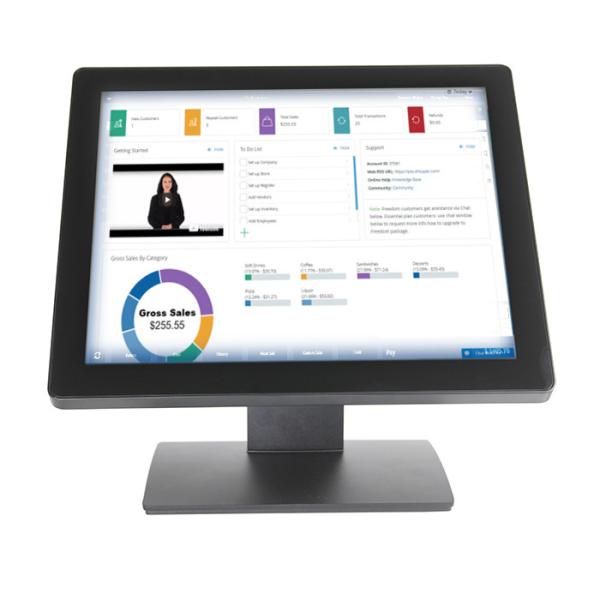

17 Inch Touch Screen Payment Pos Terminal 1280x1024 Resolution For Retailing

Product Categories
Shenzhen Carav Electronics Co., Ltd
Contact Now

17 Inch Touch Screen Payment Pos Terminal 1280x1024 Resolution For Retailing

  • 1
  • 2

Brand Name : OEM, CaravPOS

Model Number : AIO-1789

Certification : CE, FC, ROHS

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T bank transfer, Online transfer, Western Union, L/C, Paypal

Supply Ability : 2000pcs per month

Delivery Time : 5-8 days

Packaging Details : each pos all in one will packed in a pearl cutton bag, pearl cutton fix on a box, 2 unit per a carton, Size: 53*40*44cm, gross weight: 17kgs

CPU : Intel Core I3 3th CPU, dual core

RAM : 4G Memory

Hard driver : 64G msata

Display : 17 Inch display, 1280*1024

Touch : PCAP muilt touchscreen, G+G

Color : Black

After-sale service : support

Keyword : 17 Inch with 8 Inch Dual ScreenTouch All In One Pos Computer System

Contact Now

1280x1024 resolution 17 Inch Touch screen machine payment pos terminal for retailing

Key Features

1. Support ODM/OEM.

2. Waterproof&dustproof.

3. True flat display rotatable up to 90°.

4. 10-point projected capacitive multi-touch screen.

5. Full aluminum casing with hidden-cable design.

6. 1-Year warranty

7. Built-in WIFI and more wireless modules(Optional)

Specification
Model AIO-1789
Case/Bezel Color Black/Silvery(Customizable)
Display Size 17.0"
Touch panel (True-flat Style) Projected Capacitive touch screen (Resistive touch screen optional)
LCD Type TFT LCD(LED backlight)
Resolution 1280 x 1024
LCD panel Brightness 250 cd/m2
Viewing Angle ±80° or 160° total
output Video signal connector VGA*1, more high definition interfaces
Input interface USB 2.0*2, USB*2, COM*2, Earphone*1, Mic*1, RJ45*1 (COM*3, RJ45*3, optional)
wifi & more wireless modules 2.4G&5G wifi & more wireless modules, optional
ECM (Embed Computer Modul) Windows:
1. Intel processor
J1900 (Quad-core 2.0GHz/2.4GHz,Fanless), can be upgraded to 3855U
i3/i5
2.RAM
DDR3 from 4G to 16G
3.ROM
Both SSD and HHD are available, from 32G to 2T
Android:
Option1:RK3288 Cortex-A17 quad-core 1.8G, RAM:2G, ROM:8G
Option2:RK3399 Cortex-A53 8Core 1.5GHz, RAM:4G, ROM:16G
Operation System: 7.1, 9
Temperature Operating: 0°C to 40°C ;Storage -20°C to 60°C
Shipping Carton Dimensions 450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand)
Weight (approx.) Actual: 6.8 kg ;Shipping: 8.2 kg
Warranty 3 years(Except for LCD panel 1 year)
Backlight lamp life: typical 50,000 hours to half brightness
Mounting Options 75 mm and 100mm VESA mount(Remove Stood)
Power Supply Type Monitor input: +12VDC ±5%,5.0 A;
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power Consumption: less than 60W

17 Inch Touch Screen Payment Pos Terminal 1280x1024 Resolution For Retailing

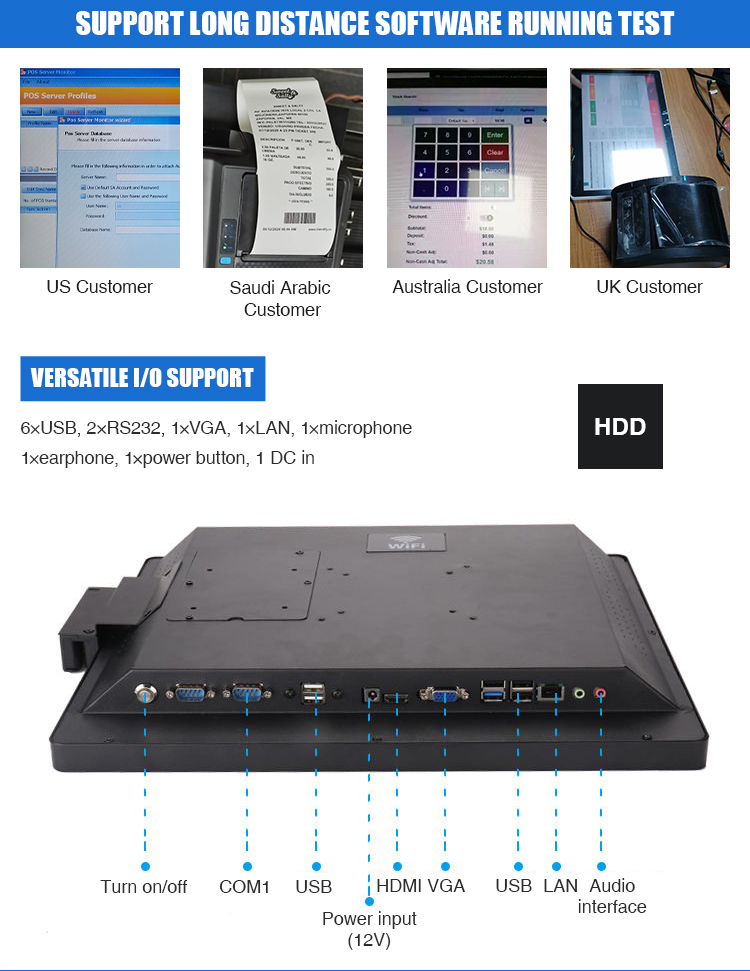

Interface

1. Fully customizable

2. USB, Ethernet, VGA, RS232, Mic, Audio, etc..

3. Powered USB is available(Optional)

4. Quick-release option for self-replacement of hard

17 Inch Touch Screen Payment Pos Terminal 1280x1024 Resolution For Retailing
