Recognize One&Two dimention code/ Screen code
high speed decoding and long distance
Upload and decode with instant speed, Rich decoding type.
Stable performance, 0-30 meter wireless distance compitable with a variaty of intteligent devices,Anti-interference.

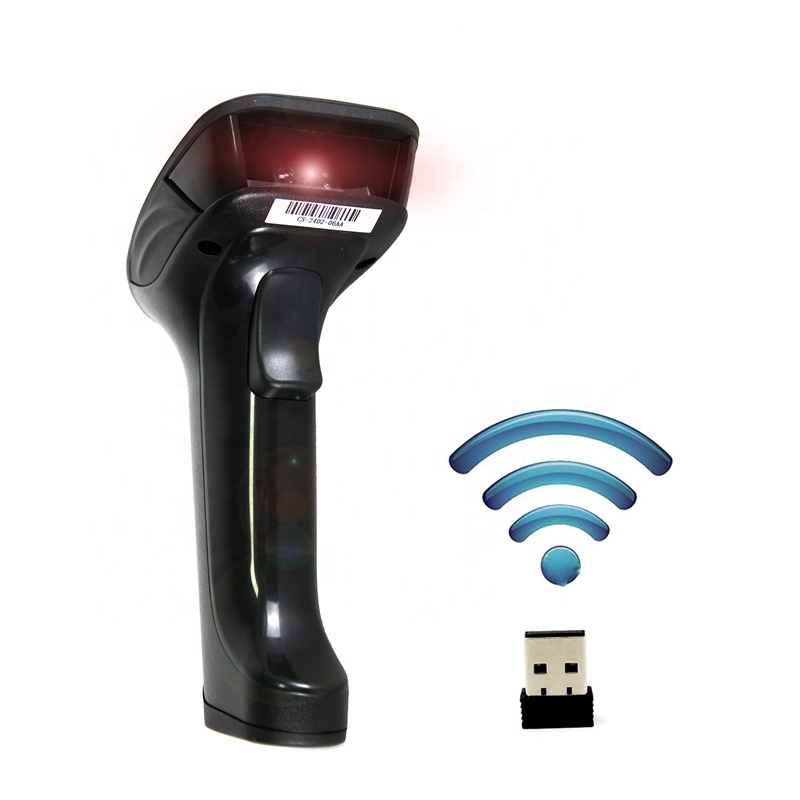

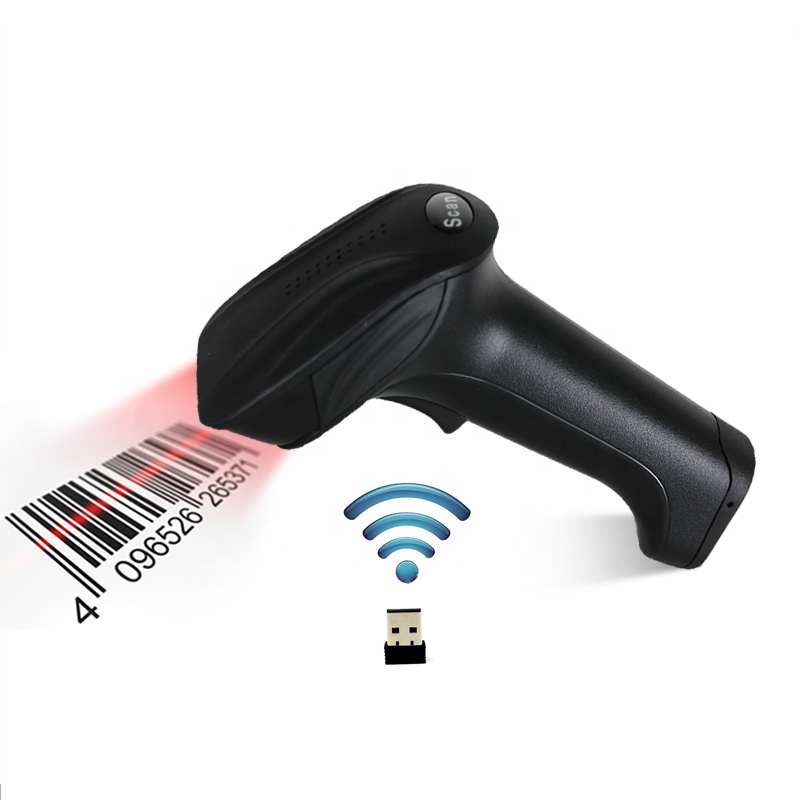

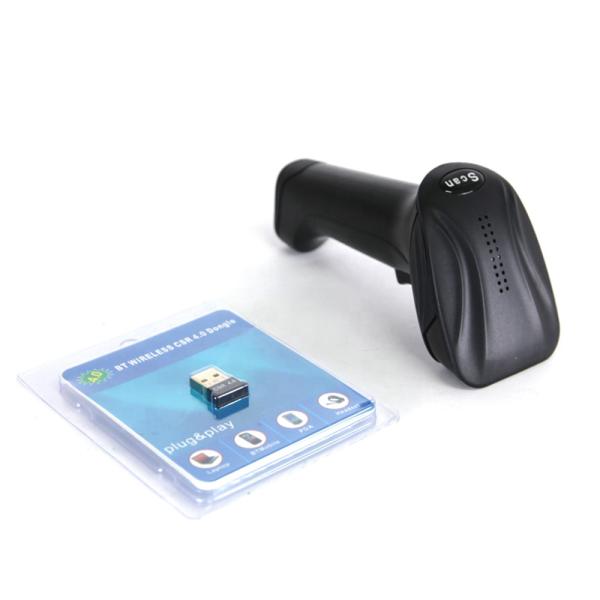

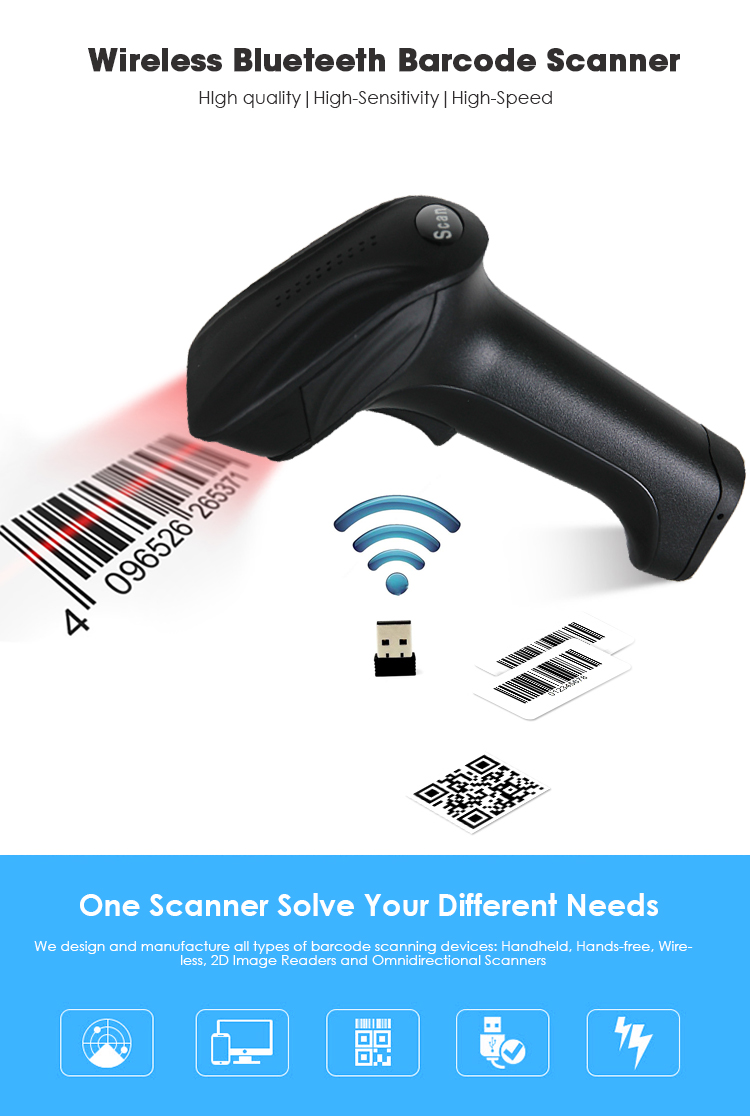

USB QR code 2D Wireless barcode reader
| Performance Parameters | Picture Sensor | 960*640 COMS |
| Capacity | 1D | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codabar,Industrial 2 of 5,Interleave 2 of 5,Standard 25,Matrix 2 of 5,MSI,GS1. |
| 2D | PDF417,MicroQR,DataMatrix,QR,HanXin,Aztec |
| Depth of Field | Tested Code | Minimum | Maximum |
| 6.6mil code39 | 5CM | 9CM |
| 13mil EAN13 | 7CM | 22CM |
| 15mil DM | 1CM | 10CM |
| 15mil QR | 4CM | 8CM |
| 15MIL PDF417 | 3CM | 15CM |
| System Compability | Android,Windows XP,IOS, Windows 7, Windows 8, Windows10,MAC |
| Scan Pattern | Automatic induction scan,Manual key scan,Continuous scan |
| Keyboard support | American keyboard |
| Decode Accuracy | 6.6mil |
| Code Available | 1D,2D Codes printing on Paper or film or Cellphone screen |
| Scanning Speed | 1300 Times/Second |
| The number of storage | 2100 |
| Symbol Contrast | 20% |
| Scanning Angle | Horizontal : 72° Vertical:82° Rotated:360° |
| Secondary development | Not support |
| Barcode output editing | Supports adding prefix and suffixes |
| Transmission Range | The open space 15 meters |
| Wireless parameters | Wireless Technology | blue-tooth |
| Human- computer interaction | Indicator light | Red&Blue LED,red light decoding tips, blue light connection tips |
| Buzzer | Start Tips,Connection success tips,Decoding success tips |
| Button | Trigger scan |
| Environment Parameters | Drop | Design to withstand 1.5 M drops to concrete 5 times |
| Environmental Sealing | IP54 |
| Working Temperature | -20-55℃ |
| Conserve Temperature | -20-60℃ |
| Working Humidity | 5-95% Non-Condensed |
| Conserve Humidity | 5-95% Non-Condensed |
| Environment Light | 0-120000LUX |
| Physical Parameters | Net Weight | 150g |
| Packing Weight | 350g |
| Host Size(L*W*H) | 167mm* 72mm*85mm |
| Packing Size(L*W*H) | 185mm*110mm*80mm |
| Data line length | 180CM(±3cm) |
| Battery capacity | 2000MAH |
| Certification | CE,FCC,ROHS,IEC60950 ,IEC62471, EN55022, EN55024, EN61000-3, IEC62321 EN60950,EN60529 |
Feather:
Recognize One&Two dimention code/ Screen code
high speed decoding and long distance
Upload and decode with instant speed, Rich decoding type.
Stable performance, 0-30 meter wireless distance compitable with a variaty of intteligent devices,Anti-interference.
Q: Are you trading company or manufacturer?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally it is within 2-5 working days if the goods are in stock. Or it is within 5-7 working days if the goods are out of stock, and it depends on quantity; and 10-15 working days for customized products.
Q: Do you provide samples?
A: Yes, the sample can be offered. please contact the salesperson by informing the part number and yourrequirements, then we will send the sample by such DHL, FedEx, TNT, UPS, etc after your sample order confirmed.
Q: How to ship goods to us?
A: we can send goods by DHL/FedEx/TNT/UPS/ARAMEX/SEA, and door to door;
Eg: 3-5 working days arrive in USA/Canada/England/Germany/Japan/Korea/Singapore by DHL/FedEx.
Q: We need my own package and Brand. can you offer the service?
A: yes, we can offer OEM/ODM service for your brand or your design. but we will require an MOQ for different models.
